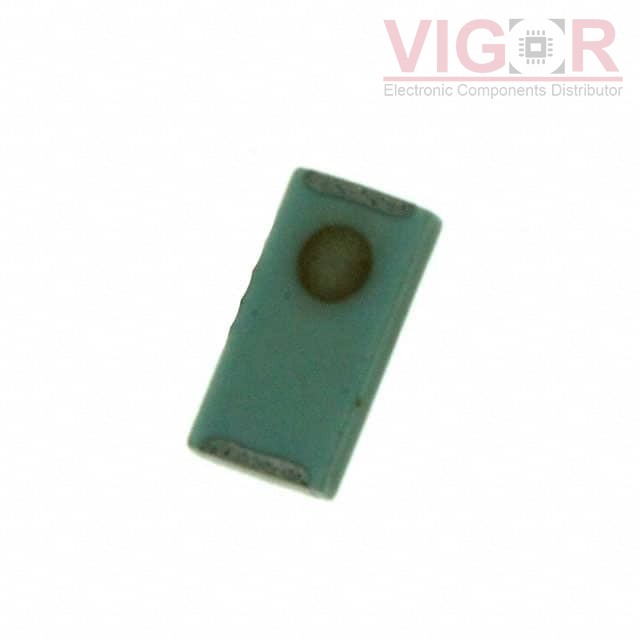

AH316M157501-T

Image is for reference,
please contact us to get the real picture

Part No :: AH316M157501-T

Manufacturer: TAIYO YUDEN

Description: RF ANT 1.575GHZ CHIP SOLDER SMD

Catalog: RF Antennas

DataSheet: AH316M157501-T PDF

Availability: 2908 pieces

Unit Price: ~~$3.98000~~

Current price of AH316M157501-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH316M157501-T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz
Frequency Range:	1.574GHz ~ 1.576GHz
Antenna Type:	Chip
Number of Bands:	1
VSWR:	3
Return Loss:	-
Gain:	2.4dBi, -0.6dBic
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.020" (0.50mm)
Applications:	GPS

Please confirm the specifications of the products when ordering.
