RAZ52212DM

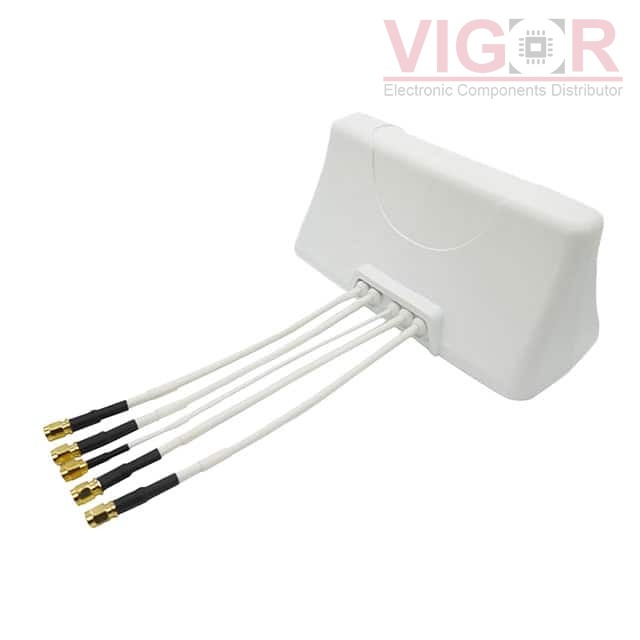

Image is for reference,
please contact us to get the real picture

Part No :: RAZ52212DM

Manufacturer: PulseLarsen Antenna

Description: RF ANT 802MHZ/1.582GHZ MOD PANEL

Catalog: RF Antennas

DataSheet: RAZ52212DM PDF

Availability: 11 pieces

Unit Price: ~~$144.38000~~

Current price of RAZ52212DM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RAZ52212DM Specifications

Type	Description
Series:	RAZORBACK
Package:	Bulk
Part Status:	Active
RF Family/Standard:	Cellular, Navigation, WiFi
Frequency Group:	Wide Band
Frequency (Center/Band):	802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Frequency Range:	644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type:	Module
Number of Bands:	5
VSWR:	2
Return Loss:	-
Gain:	4.6dBi, 4.9dBi, 6dBi, 6.6dBi
Power - Max:	45 W
Features:	Cable - 5.18m, LNA
Termination:	SMA Male (3), RP-SMA Male (2)
Ingress Protection:	IP67
Mounting Type:	Panel Mount
Height (Max):	3.644" (92.55mm)
Applications:	GPS, LTE, Wi-Fi

Please confirm the specifications of the products when ordering.
