ANT1818B00DT1516S

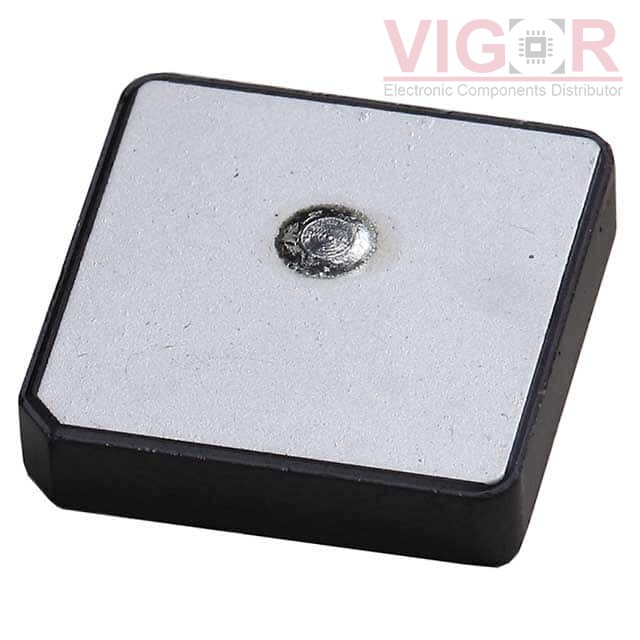

Image is for reference,
please contact us to get the real picture

Part No :: ANT1818B00DT1516S

Manufacturer: Yageo

Description: RF ANT 1.575/1.602GHZ CER PATCH

Catalog: RF Antennas

DataSheet: ANT1818B00DT1516S PDF

Availability: 0 pieces

Unit Price: ~~$2.67000~~

Current price of ANT1818B00DT1516S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ANT1818B00DT1516S Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz, 1.602GHz
Frequency Range:	1.575GHz ~ 1.606GHz
Antenna Type:	Ceramic Patch
Number of Bands:	2
VSWR:	2
Return Loss:	-26.080dB, -26.781dB
Gain:	2.65dBi, 2.79dBi
Power - Max:	-
Features:	-
Termination:	Pin
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.157" (4.00mm)
Applications:	GLONASS, GPS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$2.67000	$2.67
10	$2.41444	$24.1444
25	$2.15583	$53.89575
100	$1.94014	$194.014
300	$1.72456	$517.368
600	$1.50900	$905.4
1200	$1.25031	$1500.372
2700	$1.16408	$3143.016
5100	$1.12097	$5716.947

Hot Products

AP.17E.07.0064A

RF ANT 1.575GHZ CER PATCH MHFI

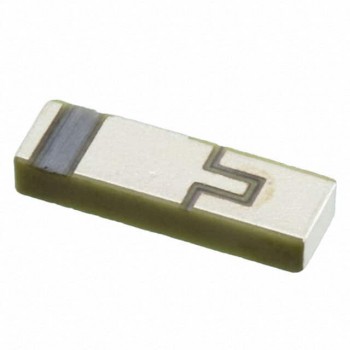

W3056
