ANT7836LL15R2400A

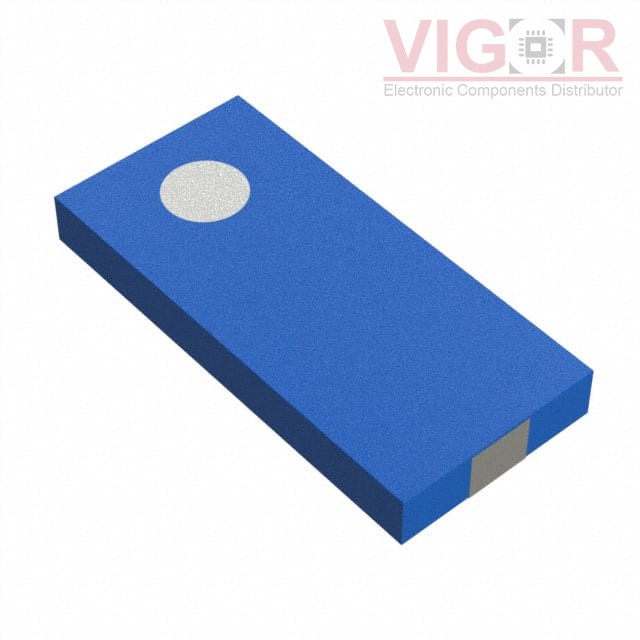

Image is for reference,
please contact us to get the real picture

Part No :: ANT7836LL15R2400A

Manufacturer: Yageo

Description: RF ANT 2.45GHZ CHIP SOLDER SMD

Catalog: RF Antennas

DataSheet: ANT7836LL15R2400A PDF

Availability: 6000 pieces

Unit Price: ~~$1.59000~~

Current price of ANT7836LL15R2400A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ANT7836LL15R2400A Specifications

Type	Description
Series:	7836
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	802.15.4, Bluetooth, General ISM, WiFi
Frequency Group:	UHF (2GHz ~ 3GHz)
Frequency (Center/Band):	2.45GHz
Frequency Range:	2.4GHz ~ 2.5GHz
Antenna Type:	Chip
Number of Bands:	1
VSWR:	-
Return Loss:	10dB
Gain:	4.1dBi
Power - Max:	1 W
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.035" (0.90mm)
Applications:	Bluetooth, ISM, Wi-Fi, Zigbee™

Please confirm the specifications of the products when ordering.
