ACA-106-T

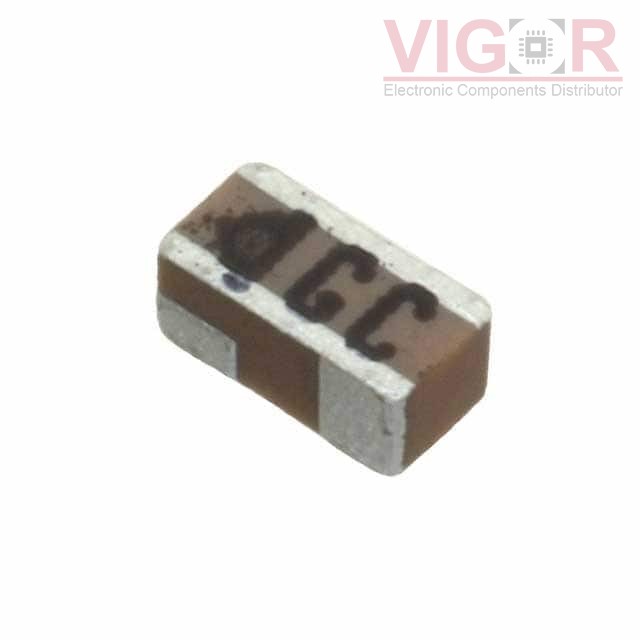

Product image
Product thumb
Part No :

ACA-106-T

Manufacturer
Abracon
VIGOR # :

4976538

Description
RF ANT 1.56GHZ/1.575GHZ CHIP SLD
Catalog
RF Antennas
DataSheet
ACA-106-T PDF
Country of origin
-
Date code
-
ads
ACA-106-T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.56GHz, 1.575GHz, 1.585GHz
Frequency Range:1.56GHz ~ 1.61GHz
Antenna Type:Chip
Number of Bands:4
VSWR:3
Return Loss:-
Gain:3.28dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.047" (1.20mm)
Applications:Beidou, GLONASS, GNSS, GPS
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of ACA-106-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
