AD8345ARE

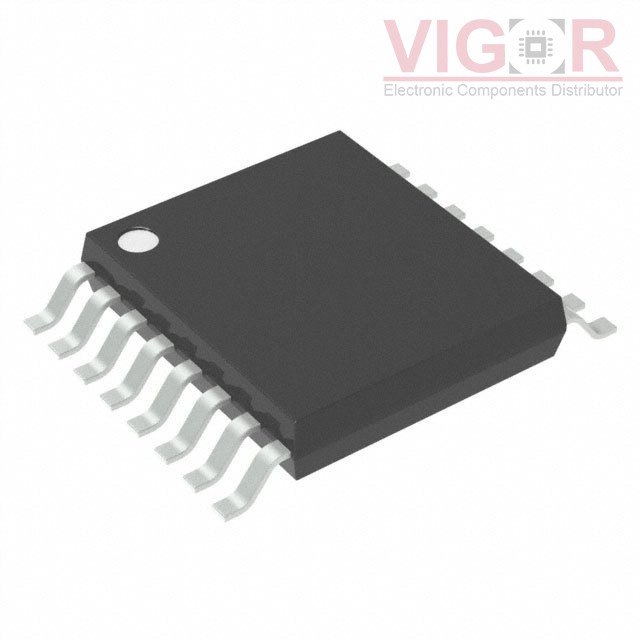

Image is for reference,
please contact us to get the real picture

Part No :: AD8345ARE

Manufacturer: VIGOR

Description: QUADRATURE MODULATOR

Catalog: RF Modulators

DataSheet: AD8345ARE PDF

Availability: 1304 pieces

Unit Price: ~~$7.75000~~

Current price of AD8345ARE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AD8345ARE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Function:	Modulator
LO Frequency:	140MHz ~ 1GHz
RF Frequency:	140MHz ~ 1GHz
P1dB:	2.5dBm
Noise Floor:	-155dBm/Hz
Output Power:	2dBm
Current - Supply:	78 mA
Voltage - Supply:	2.7V ~ 5.5V
Test Frequency:	800MHz
Package / Case:	16-TSSOP (0.173", 4.40mm Width) Exposed Pad

Please confirm the specifications of the products when ordering.
