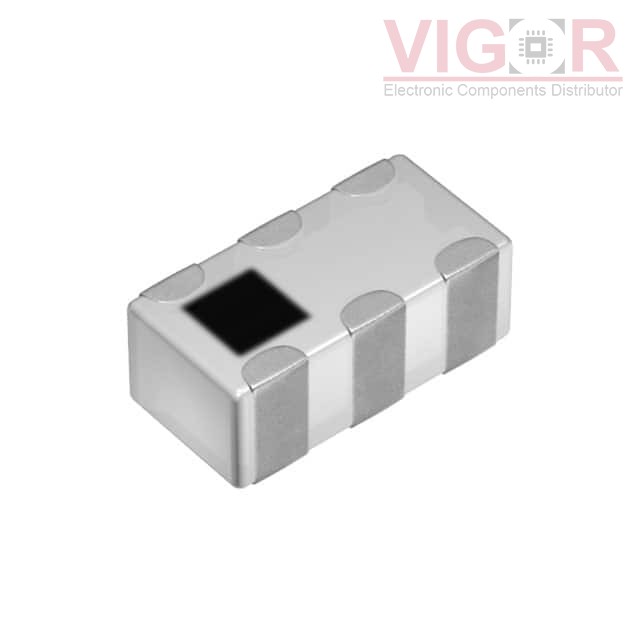

DPX165950DT-8145A1

Image is for reference,
please contact us to get the real picture

Part No :: DPX165950DT-8145A1

Manufacturer: TDK Corporation

Description: MULTILAYER DIPLEXER FOR 2400 - 2

Catalog: RF Multiplexers

DataSheet: DPX165950DT-8145A1 PDF

Availability: 3820 pieces

Unit Price: ~~$0.33000~~

Current price of DPX165950DT-8145A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPX165950DT-8145A1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):	30.00dB / 37.00dB
High Band Attenuation (min / max dB):	15.00dB / 19.00dB
Return Loss (Low Band / High Band):	9.54dB / 9.54dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 PC Pad
