DPX165850DT-8086A1

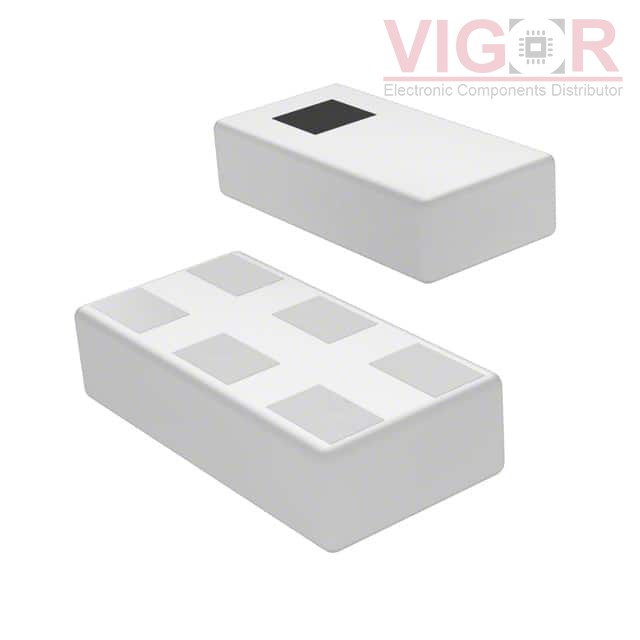

Image is for reference,
please contact us to get the real picture

Part No :: DPX165850DT-8086A1

Manufacturer: TDK Corporation

Description: MULTILAYER DIPLEXER FOR 698 - 26

Catalog: RF Multiplexers

DataSheet: DPX165850DT-8086A1 PDF

Availability: 11362 pieces

Unit Price: ~~$0.33000~~

Current price of DPX165850DT-8086A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPX165850DT-8086A1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	698MHz ~ 2.69GHz / 3.4GHz ~ 5.85GHz
Low Band Attenuation (min / max dB):	20.00dB / 23.80dB
High Band Attenuation (min / max dB):	18.00dB / 23.40dB
Return Loss (Low Band / High Band):	9.54dB / 9.54dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 PC Pad
