DPX165950DT-8148A1

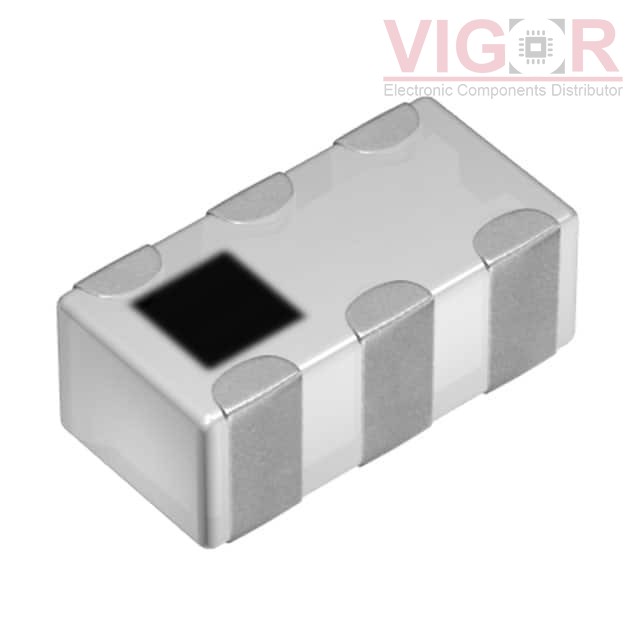

Image is for reference,
please contact us to get the real picture

Part No :: DPX165950DT-8148A1

Manufacturer: TDK Corporation

Description: RF DIPLEXER 2.45/5.425GHZ 0603

Catalog: RF Multiplexers

DataSheet: DPX165950DT-8148A1 PDF

Availability: 3200 pieces

Unit Price: ~~$0.33000~~

Current price of DPX165950DT-8148A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPX165950DT-8148A1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):	21.00dB / 36.00dB
High Band Attenuation (min / max dB):	10.00dB / 42.00dB
Return Loss (Low Band / High Band):	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 PC Pad
