DPX202170DT-4149A1

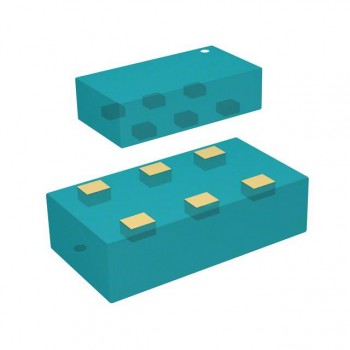

Image is for reference,
please contact us to get the real picture

Part No :: DPX202170DT-4149A1

Manufacturer: TDK Corporation

Description: RF DIPLEXER 892MHZ/1.94GHZ 0805

Catalog: RF Multiplexers

DataSheet: DPX202170DT-4149A1 PDF

Availability: 2886 pieces

Unit Price: ~~$0.88000~~

Current price of DPX202170DT-4149A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPX202170DT-4149A1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz
Low Band Attenuation (min / max dB):	15.00dB / 18.00dB
High Band Attenuation (min / max dB):	20.00dB / 23.00dB
Return Loss (Low Band / High Band):	20.0dB / 14.0dB
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric), 6 PC Pad

Please confirm the specifications of the products when ordering.
