DIP1524-01D3

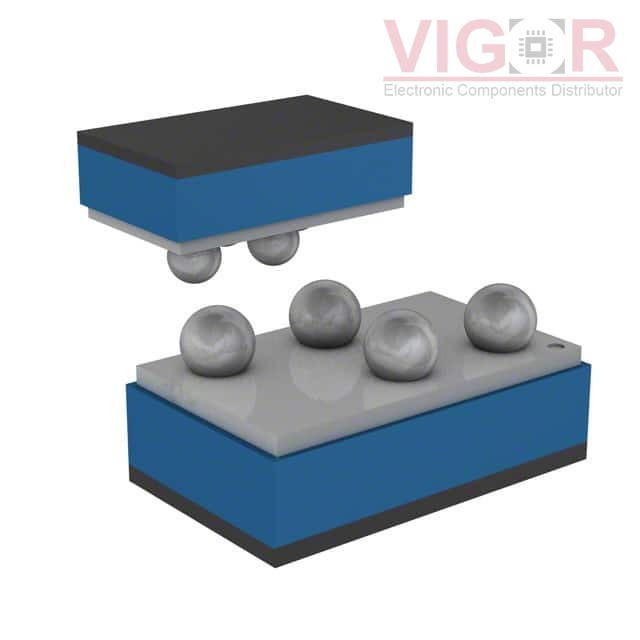

Image is for reference,
please contact us to get the real picture

Part No :: DIP1524-01D3

Manufacturer: STMicroelectronics

Description: RF DIPLX 1589.655MHZ/2.55GHZ BGA

Catalog: RF Multiplexers

DataSheet: DIP1524-01D3 PDF

Availability: 4361 pieces

Unit Price: ~~$0.45000~~

Current price of DIP1524-01D3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DIP1524-01D3 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz
Low Band Attenuation (min / max dB):	20.00dB / -
High Band Attenuation (min / max dB):	18.00dB / -
Return Loss (Low Band / High Band):	10.0dB / 20.0dB
Mounting Type:	Surface Mount
Package / Case:	4-UFBGA, FCBGA
