TFSD10055950-5001C1

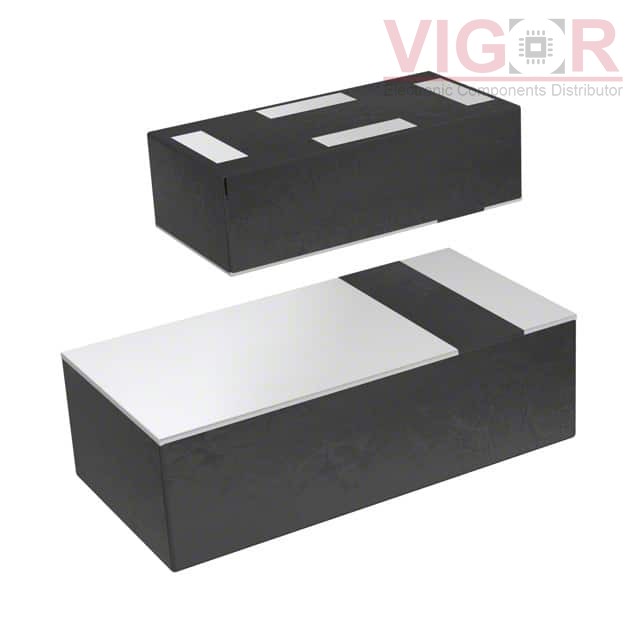

Image is for reference,
please contact us to get the real picture

Part No :: TFSD10055950-5001C1

Manufacturer: TDK Corporation

Description: RF DIPLEXER 2.45GHZ/5.45GHZ 0402

Catalog: RF Multiplexers

DataSheet: TFSD10055950-5001C1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TFSD10055950-5001C1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TFSD10055950-5001C1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Diplexer
Frequency Bands (Low / High):	2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz
Low Band Attenuation (min / max dB):	20.00dB / 29.00dB
High Band Attenuation (min / max dB):	18.00dB / 26.00dB
Return Loss (Low Band / High Band):	21.0dB / 23.0dB
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
