DPX165950DT-8030D1

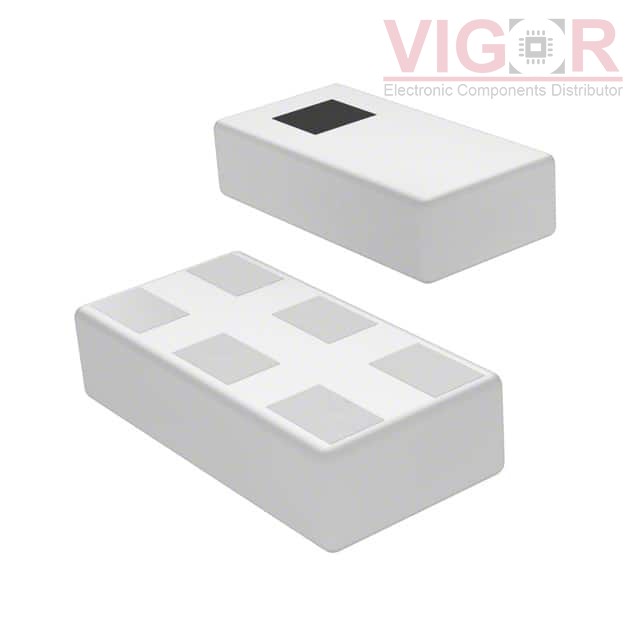

Image is for reference,
please contact us to get the real picture

Part No :: DPX165950DT-8030D1

Manufacturer: TDK Corporation

Description: RF DIPLEX 1740.5MZ/5.425GHZ 0603

Catalog: RF Multiplexers

DataSheet: DPX165950DT-8030D1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of DPX165950DT-8030D1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPX165950DT-8030D1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Diplexer
Frequency Bands (Low / High):	791MHz ~ 2.69GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):	20.00dB / 29.00dB
High Band Attenuation (min / max dB):	-
Return Loss (Low Band / High Band):	20.0dB / 14.0dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 PC Pad
