NJG1815K75-TE1

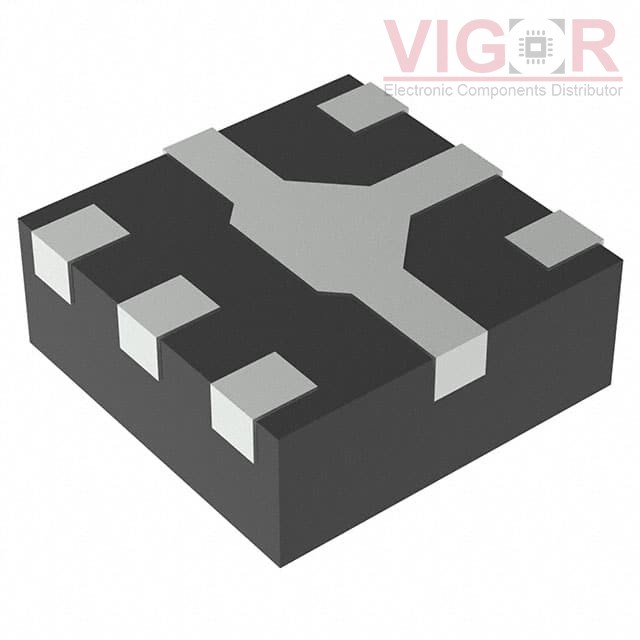

Image is for reference,
please contact us to get the real picture

Part No :: NJG1815K75-TE1

Manufacturer: New Japan Radio (NJR)

Description: SPDTSWITCH GAAS MMIC

Catalog: RF Switches

DataSheet: NJG1815K75-TE1 PDF

Availability: 4355 pieces

Unit Price: ~~$0.87000~~

Current price of NJG1815K75-TE1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NJG1815K75-TE1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Type:	802.11a/b/g/n/ac/ax, WLAN
Topology:	-
Circuit:	SPDT
Frequency Range:	6GHz
Isolation:	25dB
Insertion Loss:	0.45dB
Test Frequency:	3.8GHz, 6GHz
P1dB:	31dBm
IIP3:	-
Features:	-
Impedance:	50Ohm
Voltage - Supply:	2.5V ~ 5V
Operating Temperature:	-40°C ~ 105°C
Package / Case:	6-XFDFN Exposed Pad
Supplier Device Package:	6-DFN (1x1)
