NJG1809ME7-TE1

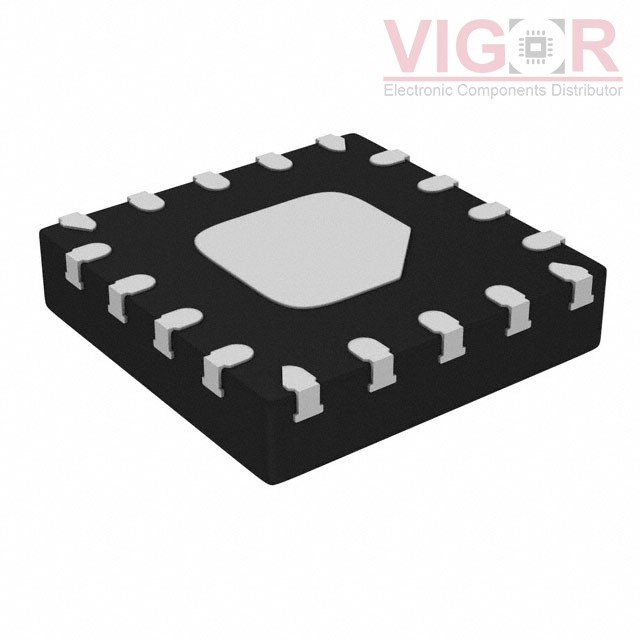

Image is for reference,
please contact us to get the real picture

Part No :: NJG1809ME7-TE1

Manufacturer: New Japan Radio (NJR)

Description: HIGH POWERSP4T SWITCH GAAS MMIC

Catalog: RF Switches

DataSheet: NJG1809ME7-TE1 PDF

Availability: 3514 pieces

Unit Price: ~~$1.31000~~

Current price of NJG1809ME7-TE1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NJG1809ME7-TE1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Type:	802.11a/b/g/n/ac, LTE, WLAN
Topology:	-
Circuit:	SP4T
Frequency Range:	6GHz
Isolation:	23dB
Insertion Loss:	0.5dB
Test Frequency:	5.85GHz
P1dB:	-
IIP3:	60dBm
Features:	DC Blocked
Impedance:	50Ohm
Voltage - Supply:	2.5V ~ 5V
Operating Temperature:	-40°C ~ 105°C
Package / Case:	18-XFQFN Exposed Pad
Supplier Device Package:	18-EQFN (2x2)
