ADRF5025BCCZN

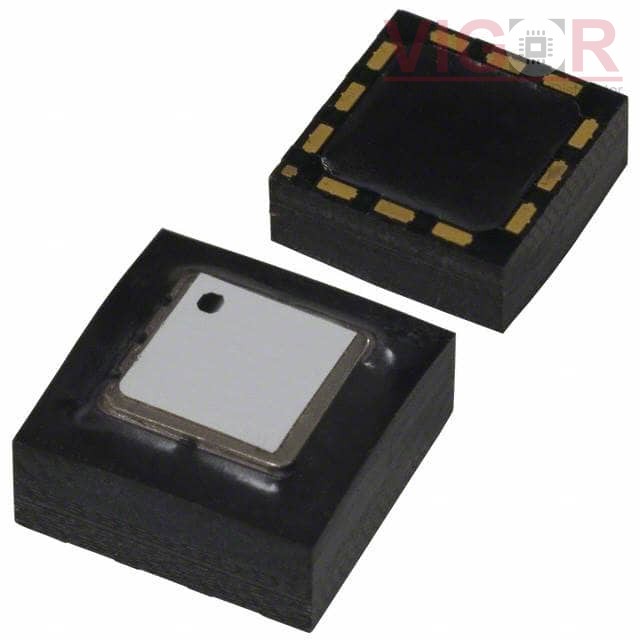

Image is for reference,
please contact us to get the real picture

Part No :: ADRF5025BCCZN

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC RF SWITCH SPDT 40GHZ 12LGA

Catalog: RF Switches

DataSheet: ADRF5025BCCZN PDF

Availability: 455 pieces

Unit Price: ~~$106.69000~~

Current price of ADRF5025BCCZN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADRF5025BCCZN Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
RF Type:	General Purpose
Topology:	Reflective
Circuit:	SPDT
Frequency Range:	9kHz ~ 44GHz
Isolation:	35dB
Insertion Loss:	1.6dB
Test Frequency:	44GHz
P1dB:	27.5dBm
IIP3:	50dBm
Features:	-
Impedance:	50Ohm
Voltage - Supply:	3.15V ~ 3.45V
Operating Temperature:	-40°C ~ 105°C
Package / Case:	12-VFLGA
Supplier Device Package:	12-LGA (2.25x2.25)
