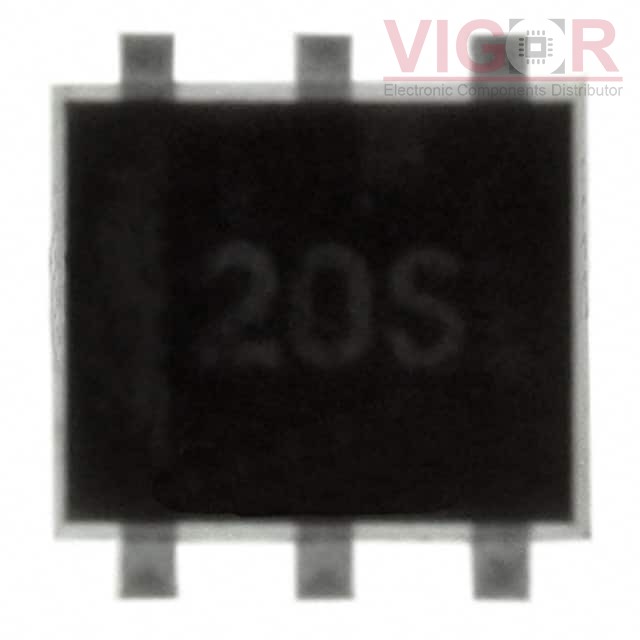

NJG1522KB2-TE1

Part No :: NJG1522KB2-TE1

Manufacturer: New Japan Radio (NJR)

Description: IC RF SWITCH SPDT 3GHZ 6FLP-B2

Catalog: RF Switches

DataSheet: NJG1522KB2-TE1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of NJG1522KB2-TE1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NJG1522KB2-TE1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Type:	GSM
Topology:	Absorptive
Circuit:	SPDT
Frequency Range:	50MHz ~ 3GHz
Isolation:	27dB
Insertion Loss:	0.5dB
Test Frequency:	2GHz
P1dB:	24dBm
IIP3:	-
Features:	-
Impedance:	50Ohm
Voltage - Supply:	-
Operating Temperature:	-30°C ~ 85°C
Package / Case:	6-SMD, Flat Leads
Supplier Device Package:	6-FLP-B2
