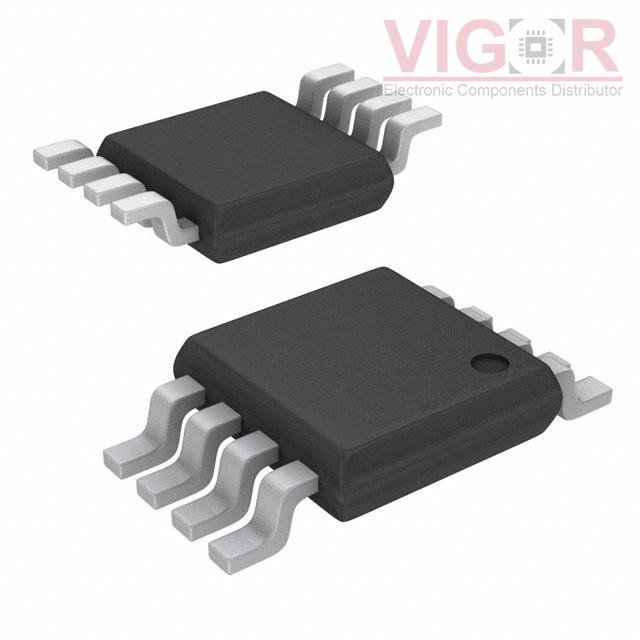

NJG1506R-TE2#

Part No :: NJG1506R-TE2#

Manufacturer: New Japan Radio (NJR)

VIGOR # :: 4973114

Description: IC RF SWITCH SPDT 3GHZ 8VSP

Catalog: RF Switches

DataSheet: NJG1506R-TE2# PDF

Country of origin: -

Date code: -

NJG1506R-TE2# Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
RF Type:	General Purpose
Topology:	Reflective
Circuit:	SPDT
Frequency Range:	50MHz ~ 3GHz
Isolation:	27dB
Insertion Loss:	0.5dB
Test Frequency:	2GHz
P1dB:	22dBm
IIP3:	-
Features:	-
Impedance:	50Ohm
Voltage - Supply:	2.5V ~ 5.5V
Operating Temperature:	-30°C ~ 85°C
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-VSP
