DA14581-00AT2

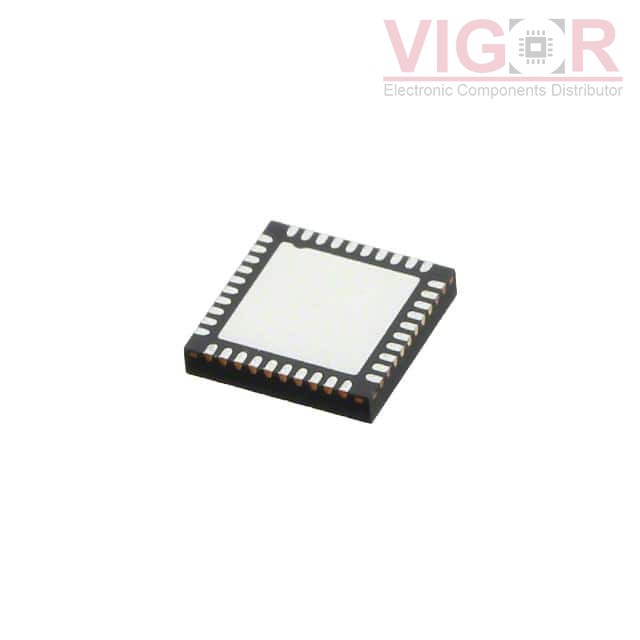

Image is for reference,
please contact us to get the real picture

Part No :: DA14581-00AT2

Manufacturer: Dialog Semiconductor

Description: IC RF TXRX+MCU BLUETOOTH 40VFQFN

Catalog: RF Transceiver ICs

DataSheet: DA14581-00AT2 PDF

Availability: 4067 pieces

Unit Price: ~~$3.01000~~

Current price of DA14581-00AT2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DA14581-00AT2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	TxRx + MCU
RF Family/Standard:	Bluetooth
Protocol:	Bluetooth v4.1
Modulation:	-
Frequency:	2.4GHz
Data Rate (Max):	-
Power - Output:	-1dBm
Sensitivity:	-93dBm
Memory Size:	32kB OTP, 84kB ROM, 50kB SRAM
Serial Interfaces:	I²C, SPI, UART
GPIO:	24
Voltage - Supply:	2.35V ~ 3.3V
Current - Receiving:	3.7mA
Current - Transmitting:	3.4mA
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	40-VFQFN Exposed Pad
Supplier Device Package:	40-QFN (5x5)

Please confirm the specifications of the products when ordering.
