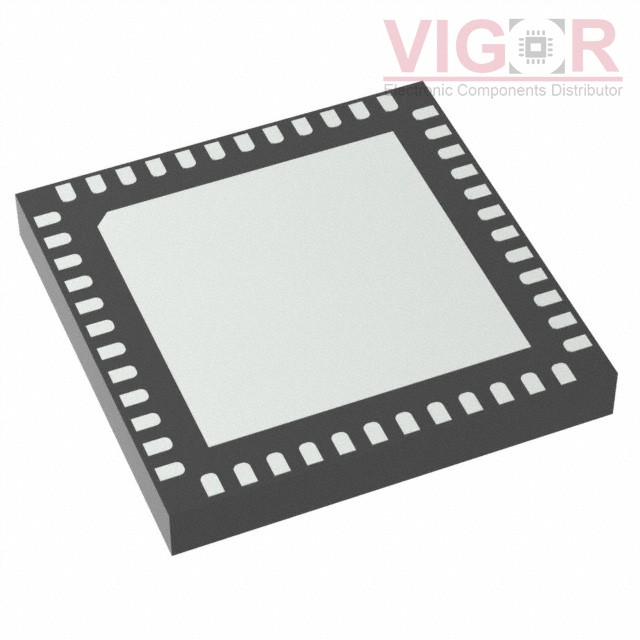

MC13234CHTR

Part No :: MC13234CHTR

Manufacturer: NXP Semiconductors

VIGOR # :: 4074100

Description: IC RF TXRX+MCU 802.15.4 48VFLGA

Catalog: RF Transceiver ICs

DataSheet: MC13234CHTR PDF

Country of origin: -

Date code: -

MC13234CHTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	TxRx + MCU
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	O-QPSK
Frequency:	2.4GHz
Data Rate (Max):	250kbps
Power - Output:	2dBm
Sensitivity:	-93dBm
Memory Size:	128kB Flash, 8kB RAM
Serial Interfaces:	I²C, SPI, UART
GPIO:	32
Voltage - Supply:	1.8V ~ 3.6V
Current - Receiving:	26.8mA ~ 35mA
Current - Transmitting:	21.3mA ~ 28.2mA
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	48-VFLGA Exposed Pad
Supplier Device Package:	48-LGA (7x7)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 16 - Jan 20 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$11.52~~	~~$11.52~~
2000	~~$5.38~~	~~$10 753.04~~

Current price of MC13234CHTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

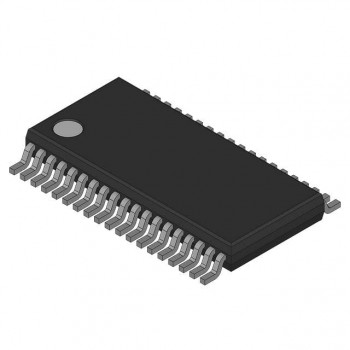

PMA7110
