JN5148/001,515

JN5148/001,515

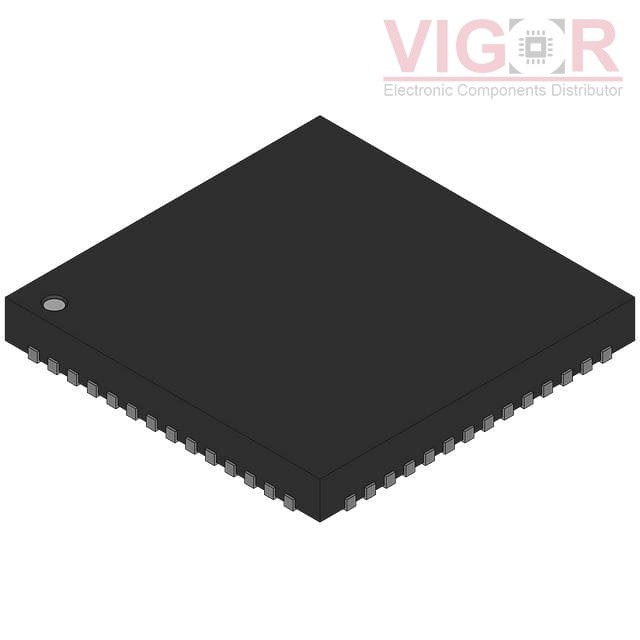

Image is for reference,
please contact us to get the real picture

Part No :

JN5148/001,515

Manufacturer
VIGOR
Description
IC RF TXRX+MCU 802.15.4 56-VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Oct 05 - Oct 09 2025
DataSheet
JN5148/001,515 PDF
Availability
18965 pieces
Unit Price
$4.04000

Current price of JN5148/001,515 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN5148/001,515 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:O-QPSK
Frequency:2.4GHz
Data Rate (Max):667kbps
Power - Output:2.75dBm
Sensitivity:-96.5dBm
Memory Size:128kB ROM, 128kB RAM
Serial Interfaces:I²C, JTAG, SPI, UART
GPIO:21
Voltage - Supply:2V ~ 3.6V
Current - Receiving:17.5mA
Current - Transmitting:15mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:-
Package / Case:56-VFQFN
Supplier Device Package:-
