JN5169-001-M03-2Z

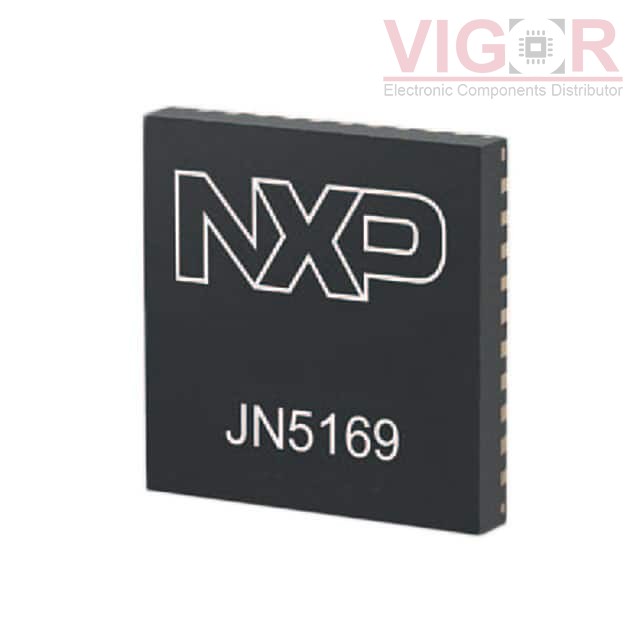

Image is for reference,
please contact us to get the real picture

Part No :: JN5169-001-M03-2Z

Manufacturer: NXP Semiconductors

Description: RX TXRX MODULE 802.15.4 U.FL SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: JN5169-001-M03-2Z PDF

Availability: 0 pieces

Unit Price: ~~$14.94703~~

Current price of JN5169-001-M03-2Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JN5169-001-M03-2Z Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	-
Frequency:	2.4GHz ~ 2.5GHz
Data Rate:	-
Power - Output:	10dBm
Sensitivity:	-96dBm
Serial Interfaces:	I²C, SPI, UART
Antenna Type:	Antenna Not Included, U.FL
Utilized IC / Part:	-
Memory Size:	512kB Flash, 4kB EEPROM, 32kB RAM
Voltage - Supply:	2V ~ 3.6V
Current - Receiving:	17mA
Current - Transmitting:	25mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C
Package / Case:	27-SMD Module

Please confirm the specifications of the products when ordering.
