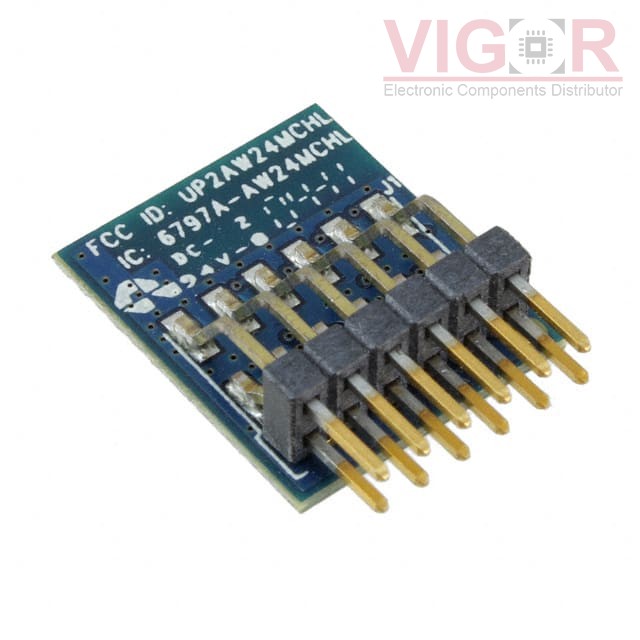

AW24MCHL-HR

Image is for reference,
please contact us to get the real picture

Part No :: AW24MCHL-HR

Manufacturer: Artaflex Inc.

Description: RX TXRX MOD ISM > 1GHZ CHIP SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: AW24MCHL-HR PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AW24MCHL-HR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AW24MCHL-HR Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Obsolete
RF Family/Standard:	General ISM > 1GHZ
Protocol:	-
Modulation:	DSSS, GFSK
Frequency:	2.4GHz
Data Rate:	1Mbps
Power - Output:	4dBm
Sensitivity:	-97dBm
Serial Interfaces:	SPI
Antenna Type:	Integrated, Chip
Utilized IC / Part:	CYRF7936
Memory Size:	-
Voltage - Supply:	2.4V ~ 3.6V
Current - Receiving:	18.4mA ~ 21.2mA
Current - Transmitting:	20.8mA ~ 34.1mA
Mounting Type:	Surface Mount
Operating Temperature:	-20°C ~ 70°C
Package / Case:	Module
