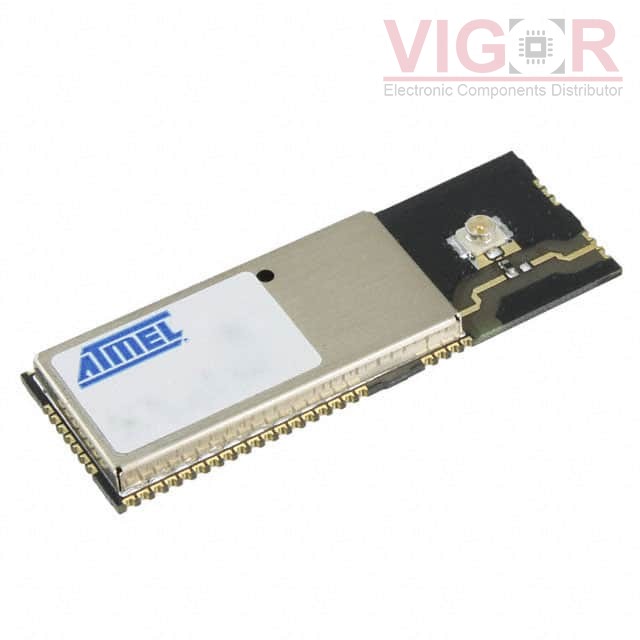

ATZB-A24-UFLBR

Part No :: ATZB-A24-UFLBR

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4975689

Description: RX TXRX MODULE 802.15.4 U.FL SMD

Catalog: RF Transceiver Modules and Modems

DataSheet: ATZB-A24-UFLBR PDF

Country of origin: -

Date code: -

ATZB-A24-UFLBR Specifications

Type	Description
Series:	ZigBit™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
RF Family/Standard:	802.15.4
Protocol:	Zigbee®
Modulation:	-
Frequency:	2.4GHz
Data Rate:	250kbps
Power - Output:	20dBm
Sensitivity:	-101dBm
Serial Interfaces:	I²C, JTAG, SPI, UART, USART
Antenna Type:	Antenna Not Included, U.FL
Utilized IC / Part:	AT86RF230
Memory Size:	128kB Flash, 4kB EEPROM, 8kB RAM
Voltage - Supply:	3V ~ 3.6V
Current - Receiving:	39.5mA
Current - Transmitting:	183.5mA
Mounting Type:	Surface Mount
Operating Temperature:	-20°C ~ 70°C
Package / Case:	Module
