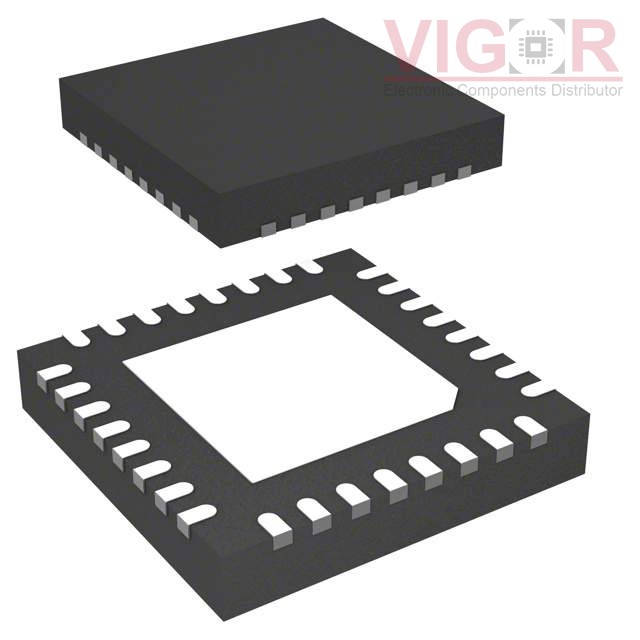

ATA6285N-PNQW

Part No :: ATA6285N-PNQW

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4974873

Description: RF TX IC ASK/FSK 315MHZ 32VFQFN

Catalog: RF Transmitters

DataSheet: ATA6285N-PNQW PDF

Country of origin: -

Date code: -

ATA6285N-PNQW Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Frequency:	315MHz
Applications:	TPM (Tire Pressure Monitor)
Modulation or Protocol:	ASK, FSK
Data Rate (Max):	20kbps
Power - Output:	6dBm
Current - Transmitting:	8.5mA
Data Interface:	PCB, Surface Mount
Antenna Connector:	PCB, Surface Mount
Memory Size:	4KB ROM, 1KB RAM, 1KB EEPROM
Features:	-
Voltage - Supply:	2V ~ 3.6V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	32-VFQFN Exposed Pad
Supplier Device Package:	32-QFN (5x5)
