HLSR 20-SM

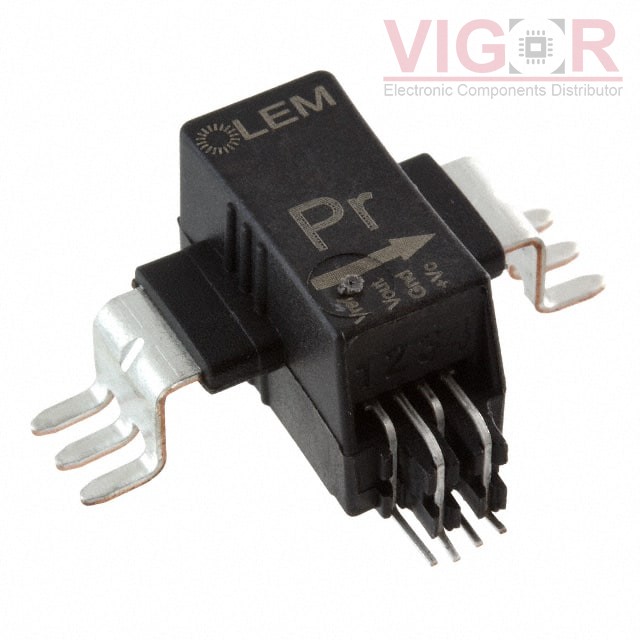

Image is for reference,
please contact us to get the real picture

Part No :: HLSR 20-SM

Manufacturer: LEM USA, Inc.

Description: SENSOR CURRENT HALL 20A AC/DC

Catalog: Current Sensors

DataSheet: HLSR 20-SM PDF

Availability: 157 pieces

Unit Price: ~~$16.56000~~

Current price of HLSR 20-SM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HLSR 20-SM Specifications

Type	Description
Series:	HLSR-P
Package:	Tray
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	20A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	40mV/A
Frequency:	400kHz
Linearity:	±0.5%
Accuracy:	±1%
Voltage - Supply:	5V
Response Time:	2.5µs
Current - Supply (Max):	25mA
Operating Temperature:	-40°C ~ 105°C
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	Module
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 157

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$16.56000	$16.56
5	$14.52039	$72.60195
10	$13.06835	$130.6835
25	$11.61631	$290.40775
50	$10.74509	$537.2545
100	$9.29305	$929.305
500	$8.71223	$4356.115
1000	$8.13142	$8131.42
