ACS781KLRTR-150B-T

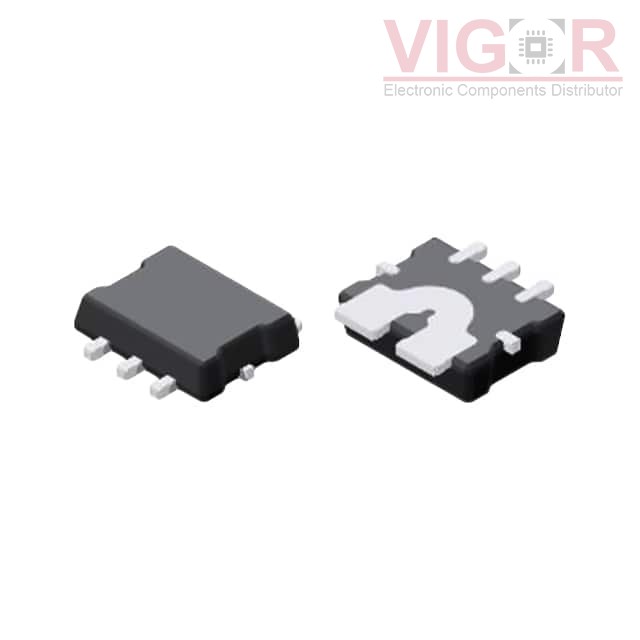

Image is for reference,
please contact us to get the real picture

Part No :: ACS781KLRTR-150B-T

Manufacturer: Allegro MicroSystems

Description: HIGH-PRECISION LINEAR HALL-EFFEC

Catalog: Current Sensors

DataSheet: ACS781KLRTR-150B-T PDF

Availability: 1222 pieces

Unit Price: ~~$4.79000~~

Current price of ACS781KLRTR-150B-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACS781KLRTR-150B-T Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Differential
Current - Sensing:	100A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	8.8mV/A
Frequency:	DC ~ 120kHz
Linearity:	±1%
Accuracy:	±0.8%
Voltage - Supply:	3V ~ 3.6V
Response Time:	3.6µs
Current - Supply (Max):	15mA
Operating Temperature:	-40°C ~ 125°C
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	7-PowerSMD Module
Supplier Device Package:	7-PSOF
