MCR1101-20-5

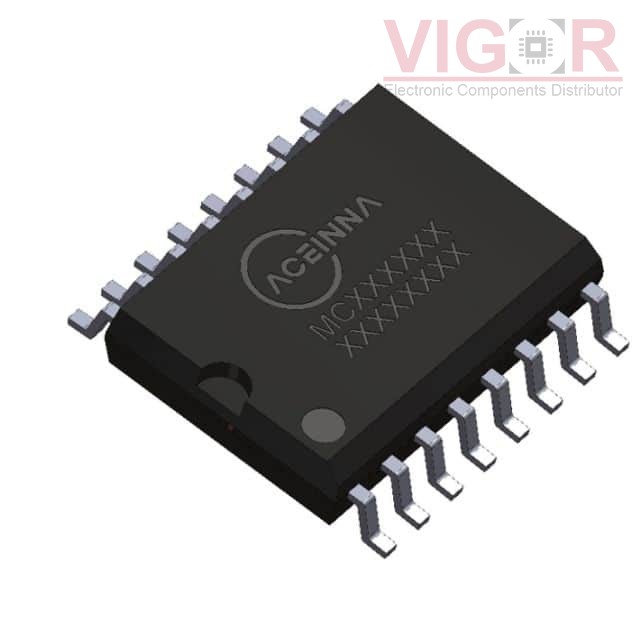

Image is for reference,
please contact us to get the real picture

Part No :: MCR1101-20-5

Manufacturer: Aceinna Inc.

Description: 20A, 5V, RATIOMETRIC, 1.5MHZ BW,

Catalog: Current Sensors

DataSheet: MCR1101-20-5 PDF

Availability: 0 pieces

Unit Price: ~~$2820.00000~~

Current price of MCR1101-20-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCR1101-20-5 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	-
Current - Sensing:	20A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	100mV/A
Frequency:	1.5MHz
Linearity:	±1.5%
Accuracy:	±3%
Voltage - Supply:	4.5V ~ 5.5V
Response Time:	300ns
Current - Supply (Max):	8mA
Operating Temperature:	-40°C ~ 105°C
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	-
