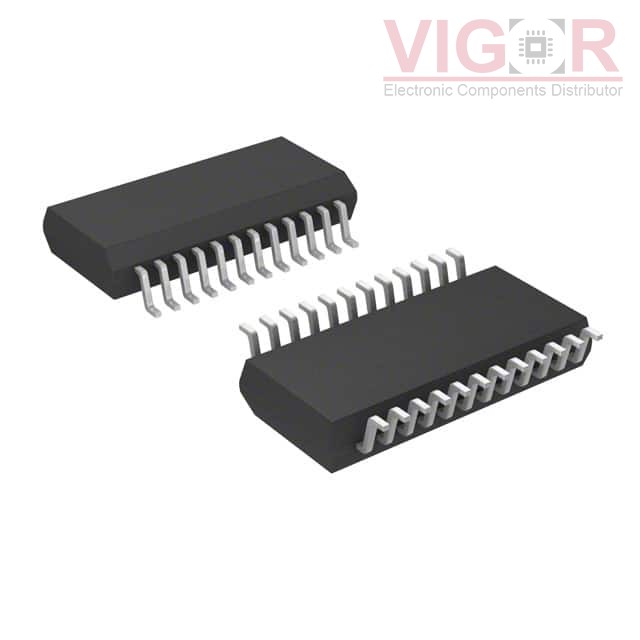

ACS764XLFTR-16AU-T

Part No :: ACS764XLFTR-16AU-T

Manufacturer: Allegro MicroSystems

VIGOR # :: 4775131

Description: SENSOR CURRENT HALL 16A DC

Catalog: Current Sensors

DataSheet: ACS764XLFTR-16AU-T PDF

Country of origin: -

Date code: -

ACS764XLFTR-16AU-T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
For Measuring:	DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	16A
Number of Channels:	1
Output:	I²C
Sensitivity:	-
Frequency:	2kHz
Linearity:	±0.75%
Accuracy:	±1%
Voltage - Supply:	3V ~ 3.6V
Response Time:	100µs
Current - Supply (Max):	14mA
Operating Temperature:	-40°C ~ 125°C
Polarization:	Unidirectional
Mounting Type:	Surface Mount
Package / Case:	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	24-QSOP
