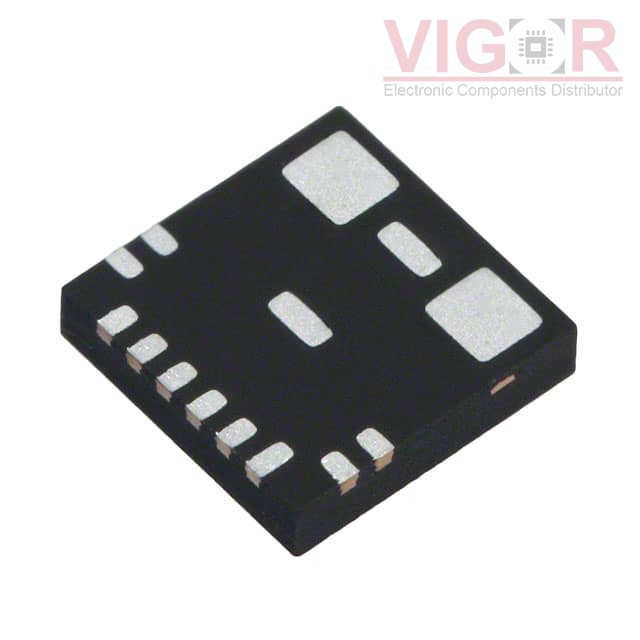

SI8519-C-IMR

Part No :: SI8519-C-IMR

Manufacturer: Silicon Labs

VIGOR # :: 4775261

Description: SENSOR CURRENT XFMR 20A AC

Catalog: Current Sensors

DataSheet: SI8519-C-IMR PDF

Country of origin: -

Date code: -

SI8519-C-IMR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
For Measuring:	AC
Sensor Type:	Transformer w/Conditioning
Current - Sensing:	20A
Number of Channels:	1
Output:	Configurable (3-Modes)
Sensitivity:	98mV/A
Frequency:	50kHz ~ 1MHz
Linearity:	-
Accuracy:	±5%
Voltage - Supply:	2.7V ~ 5.5V
Response Time:	-
Current - Supply (Max):	7mA
Operating Temperature:	-40°C ~ 125°C
Polarization:	Unidirectional
Mounting Type:	Surface Mount
Package / Case:	12-VFQFN
Supplier Device Package:	12-QFN (4x4)
