HEDS-5500#C04

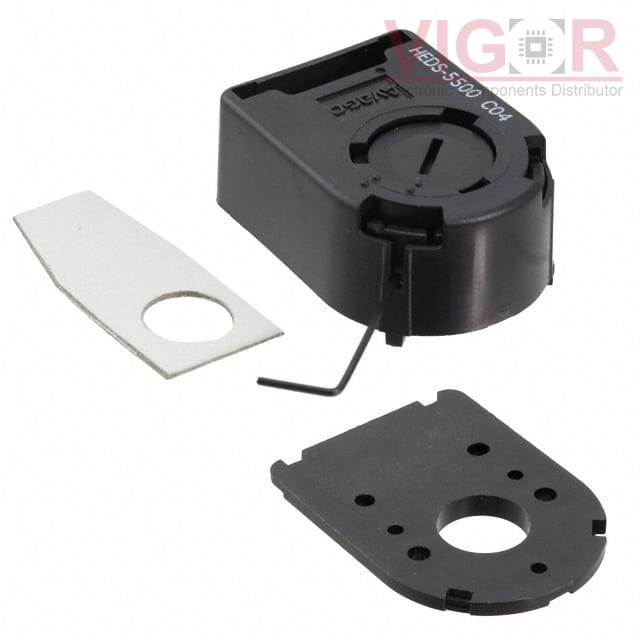

Image is for reference,
please contact us to get the real picture

Part No :: HEDS-5500#C04

Manufacturer: Broadcom

Description: ROTARY ENCODER OPTICAL 100PPR

Catalog: Encoders

DataSheet: HEDS-5500#C04 PDF

Availability: 0 pieces

Unit Price: ~~$34.45200~~

Current price of HEDS-5500#C04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HEDS-5500#C04 Specifications

Type	Description
Series:	HEDS
Package:	Bulk
Part Status:	Active
Encoder Type:	Optical
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	100
Voltage - Supply:	5V
Actuator Type:	5/32" Open Center
Detent:	No
Built in Switch:	No
Mounting Type:	Chassis Mount, Motors
Orientation:	Vertical
Termination Style:	Terminal Pins
Rotational Life (Cycles Min):	-

Please confirm the specifications of the products when ordering.
