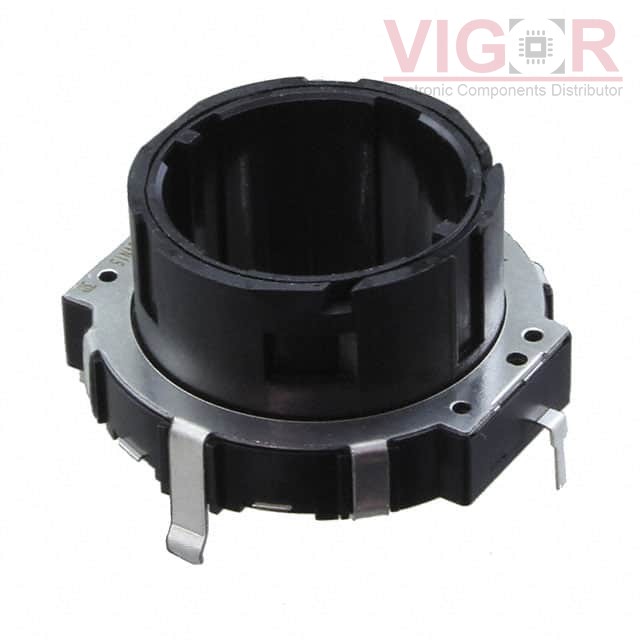

EVQ-V6H03309B

Part No :: EVQ-V6H03309B

Manufacturer: Panasonic

VIGOR # :: 3497183

Description: ROTARY ENCODER MECHANICAL 9PPR

Catalog: Encoders

DataSheet: EVQ-V6H03309B PDF

Country of origin: -

Date code: -

EVQ-V6H03309B Specifications

Type	Description
Series:	EVQV
Package:	Tray
Part Status:	Active
Encoder Type:	Mechanical
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	9
Voltage - Supply:	-
Actuator Type:	20mm Open Center
Detent:	Yes
Built in Switch:	No
Mounting Type:	PCB, Through Hole
Orientation:	Vertical
Termination Style:	PC Pin
Rotational Life (Cycles Min):	30K

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 514

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.14~~	~~$3.14~~
10	~~$3.01~~	~~$30.09~~
25	~~$2.76~~	~~$68.96~~
50	~~$2.63~~	~~$131.65~~
100	~~$2.51~~	~~$250.76~~
300	~~$2.19~~	~~$658.25~~
500	~~$2.13~~	~~$1 065.74~~
1000	~~$1.82~~	~~$1 818.04~~
5000	~~$1.63~~	~~$8 149.80~~

Current price of EVQ-V6H03309B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EMS22A50-C20-LS6

ROTARY ENCODER MAGNETIC 1024PPR

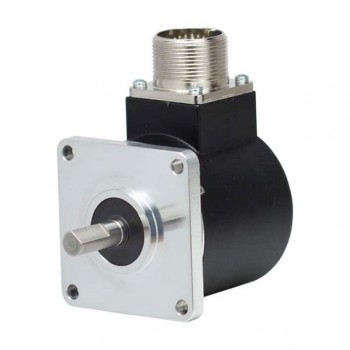

725I-07-S-0500-R-OC-1-F-1-SY-N-N

SIZE 25 ENCODER 1/4" DIA. SHAFT

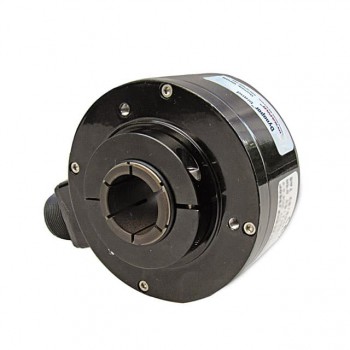

HS35R0600H110
