HEDS-9701#F54

Part No :: HEDS-9701#F54

Manufacturer: Broadcom

VIGOR # :: 3498522

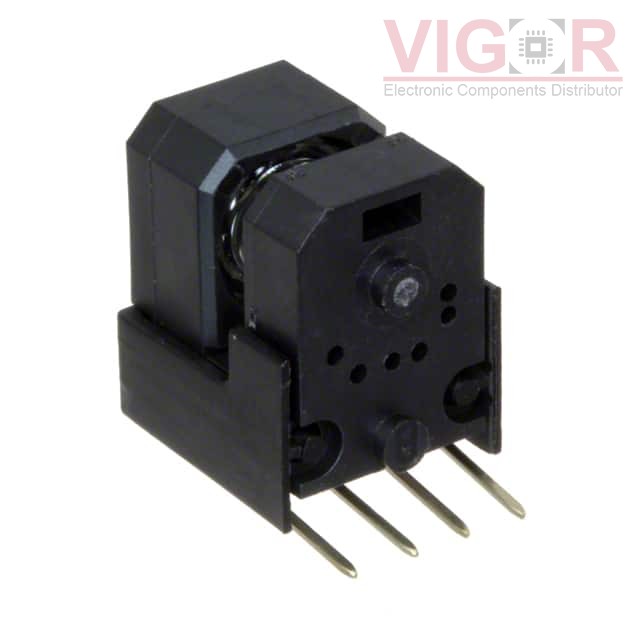

Description: ROTARY ENCODER OPTICAL 256PPR

Catalog: Encoders

DataSheet: HEDS-9701#F54 PDF

Country of origin: -

Date code: -

HEDS-9701#F54 Specifications

Type	Description
Series:	HEDS
Package:	Bulk
Part Status:	Active
Encoder Type:	Optical
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	256
Voltage - Supply:	5V
Actuator Type:	Codewheel Not Included
Detent:	No
Built in Switch:	No
Mounting Type:	Chassis Mount
Orientation:	Right Angle
Termination Style:	Terminal Pins
Rotational Life (Cycles Min):	-
