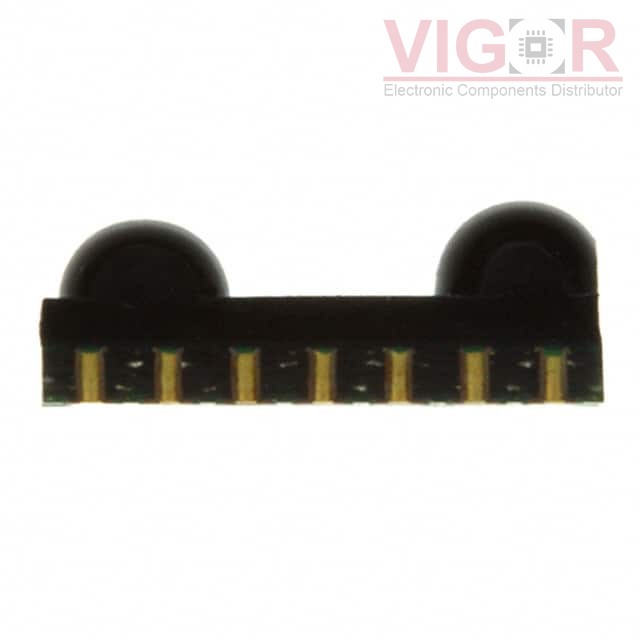

ZHX1223TB115THTR

Part No :: ZHX1223TB115THTR

Manufacturer: Zilog / Littelfuse

VIGOR # :: 4775948

Description: IRDA MODULE 115.2KBPS 7SMD

Catalog: IrDA Transceiver Modules

DataSheet: ZHX1223TB115THTR PDF

Country of origin: -

Date code: -

ZHX1223TB115THTR Specifications

Type	Description
Series:	SIR UltraSlim™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Data Rate:	115.2kbs (SIR)
Voltage - Supply:	2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C:	90 µA
Link Range, Low Power:	20cm
Orientation:	Top View
Operating Temperature:	-30°C ~ 85°C
Size:	7.3mm x 2.8mm x 1.9mm
Standards:	IrPHY 1.4
Shutdown:	Yes
