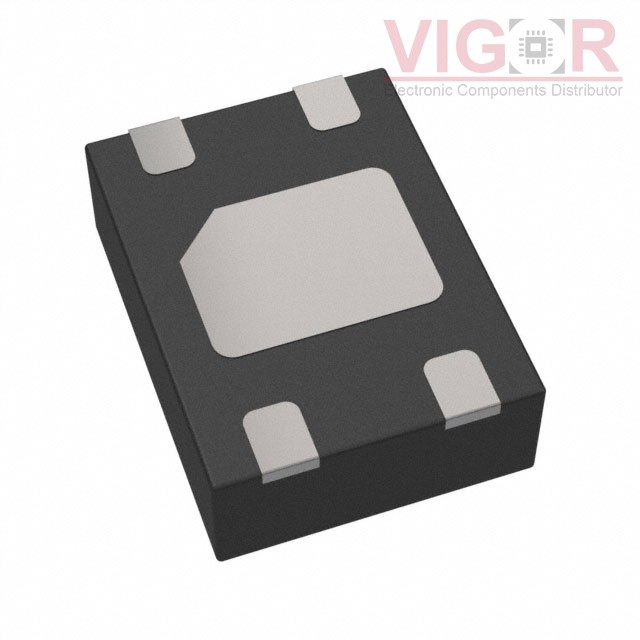

AH1804-FA-7

Part No :: AH1804-FA-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH OMNIPOLAR 4DFN

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH1804-FA-7 PDF

Availability: 45000 pieces

Unit Price: ~~$0.21775~~

Current price of AH1804-FA-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH1804-FA-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±6mT Trip, ±1.5mT Release
Test Condition:	25°C
Voltage - Supply:	2.5V ~ 3.6V
Current - Supply (Max):	12µA (Typ)
Current - Output (Max):	-
Output Type:	Push-Pull
Features:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN1216-4
Package / Case:	4-UDFN Exposed Pad
