AH1802-WG-7

Part No :: AH1802-WG-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3538763

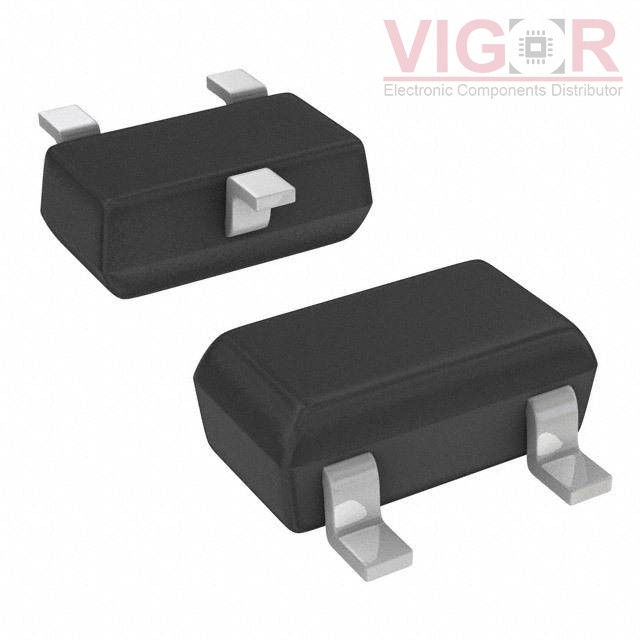

Description: MAGNETIC SWITCH OMNIPOLAR SC59-3

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH1802-WG-7 PDF

Country of origin: -

Date code: -

AH1802-WG-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±4mT Trip, ±1mT Release
Test Condition:	25°C
Voltage - Supply:	2.5V ~ 5.5V
Current - Supply (Max):	16µA
Current - Output (Max):	-
Output Type:	Open Drain
Features:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-59-3
Package / Case:	TO-236-3, SC-59, SOT-23-3
