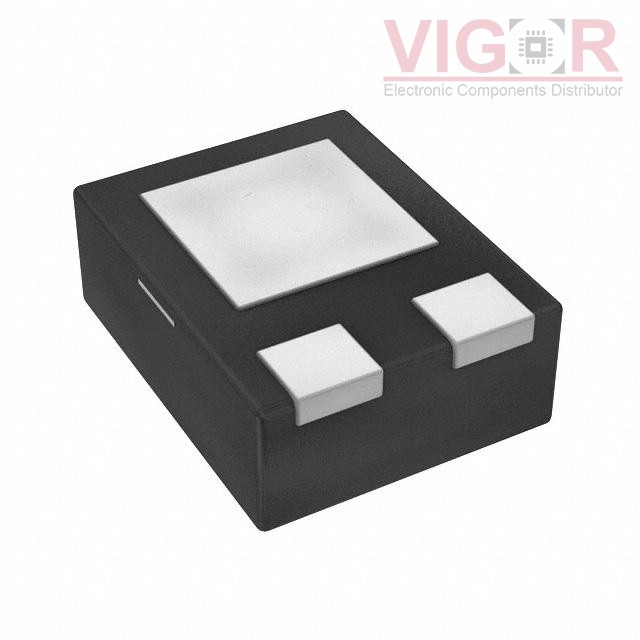

AH1802-FJG-7

Part No :: AH1802-FJG-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH OMNIPOLAR 3DFN

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: AH1802-FJG-7 PDF

Availability: 15000 pieces

Unit Price: ~~$0.37845~~

Current price of AH1802-FJG-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AH1802-FJG-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±4mT Trip, ±1mT Release
Test Condition:	25°C
Voltage - Supply:	2.5V ~ 5.5V
Current - Supply (Max):	16µA
Current - Output (Max):	-
Output Type:	Open Drain
Features:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN2020B-3
Package / Case:	3-UDFN

Please confirm the specifications of the products when ordering.
