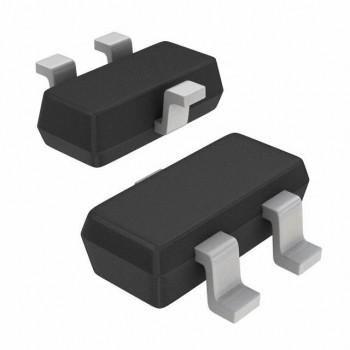

TLE49761KHTSA1

Part No :: TLE49761KHTSA1

Manufacturer: IR (Infineon Technologies)

Description: MAGNETIC SWITCH UNIPOLAR SC59

Catalog: Magnetic Sensors - Switches (Solid State)

DataSheet: TLE49761KHTSA1 PDF

Availability: 2691 pieces

Unit Price: ~~$0.74000~~

Current price of TLE49761KHTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE49761KHTSA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Unipolar Switch
Technology:	Hall Effect
Polarization:	South Pole
Sensing Range:	11mT Trip, 5mT Release
Test Condition:	-40°C ~ 150°C
Voltage - Supply:	3V ~ 18V
Current - Supply (Max):	17mA
Current - Output (Max):	-
Output Type:	Open Collector
Features:	Temperature Compensated
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-59
Package / Case:	TO-236-3, SC-59, SOT-23-3
