DN6849S

DN6849S

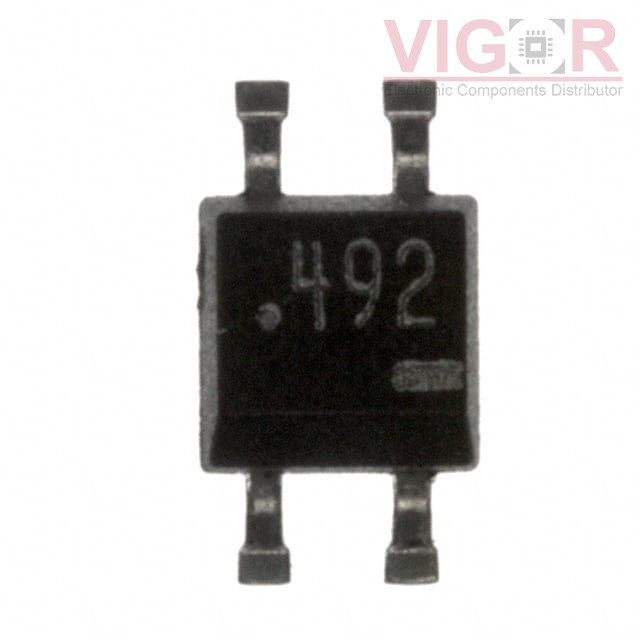

Image is for reference,
please contact us to get the real picture

Part No :

DN6849S

Manufacturer
Panasonic
Description
MAGNETIC SWITCH BIPOLAR 4ESOP
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
DN6849S PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DN6849S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DN6849S Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Function:Bipolar Switch
Technology:Hall Effect
Polarization:North Pole
Sensing Range:-17mT Trip, 17.5mT Release
Test Condition:25°C
Voltage - Supply:4.5V ~ 16V
Current - Supply (Max):6mA
Current - Output (Max):10µA
Output Type:Open Collector
Features:Temperature Compensated
Operating Temperature:-40°C ~ 100°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:4-ESOP
Package / Case:4-SMD, Gull Wing
