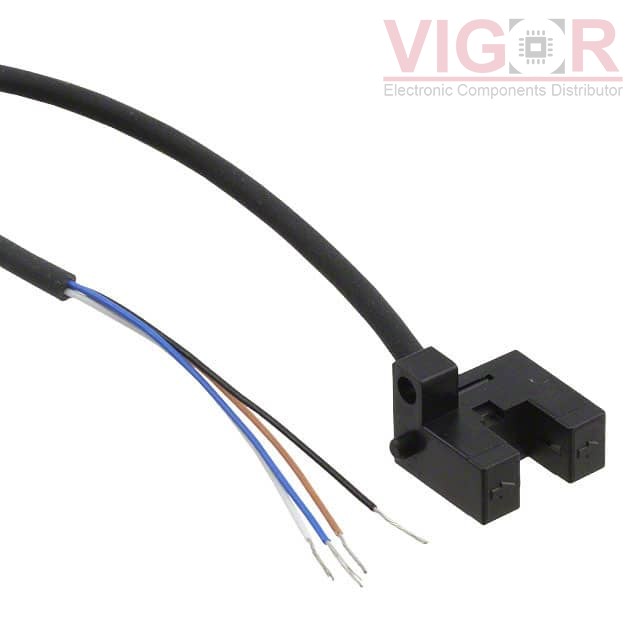

PM-R24

Part No :: PM-R24

Manufacturer: Panasonic

VIGOR # :: 4776835

Description: SENSOR OPT SLOT NPN MODULE

Catalog: Optical Sensors - Photointerrupters - Slot Type - Transistor Output

DataSheet: PM-R24 PDF

Country of origin: -

Date code: -

PM-R24 Specifications

Type	Description
Series:	PM-24
Package:	Bulk
Part Status:	Obsolete
Sensing Distance:	0.197" (5mm)
Sensing Method:	Through-Beam
Output Configuration:	NPN - Dark-ON/Light-ON - Selectable
Current - DC Forward (If) (Max):	50 mA
Current - Collector (Ic) (Max):	15 mA
Voltage - Collector Emitter Breakdown (Max):	30 V
Response Time:	20µs
Operating Temperature:	-25°C ~ 55°C
Mounting Type:	Chassis Mount
Package / Case:	Module, Wire Leads, Slot Type
