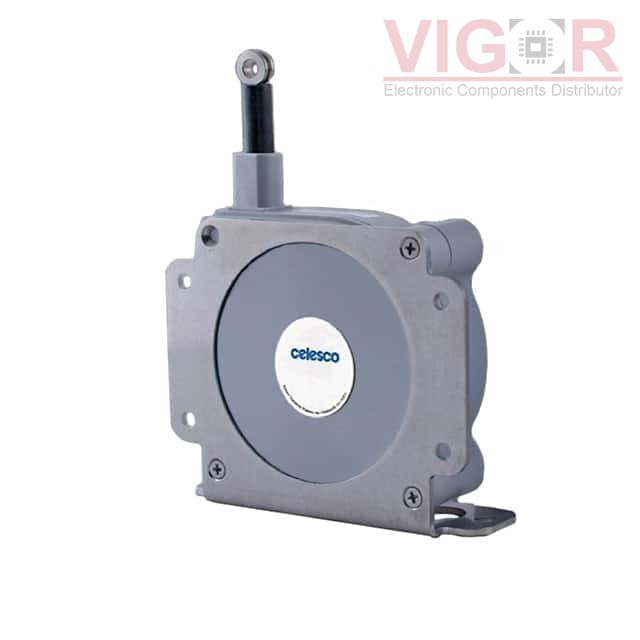

SGD-120-3

Image is for reference,
please contact us to get the real picture

Part No :: SGD-120-3

Manufacturer: TE Connectivity Measurement Specialties

Description: SENSOR LINEAR 3048MM CONNECTOR

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: SGD-120-3 PDF

Availability: 17 pieces

Unit Price: ~~$422.95000~~

Current price of SGD-120-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SGD-120-3 Specifications

Type	Description
Series:	SGD
Package:	Box
Part Status:	Active
For Measuring:	Linear Position
Technology:	Resistive
Rotation Angle - Electrical, Mechanical:	-
Linear Range:	0 ~ 3048mm (0 ~ 120")
Output:	Analog Voltage, 4 ~ 20mA
Output Signal:	-
Actuator Type:	String Potentiometer
Linearity:	-
Resistance:	10 kOhms
Resistance Tolerance:	±10%
Voltage - Supply:	8V ~ 40V
Mounting Type:	Custom
Termination Style:	Connector
Operating Temperature:	-18°C ~ 70°C
Package / Case:	Box with Connector
Supplier Device Package:	-
