CU103603

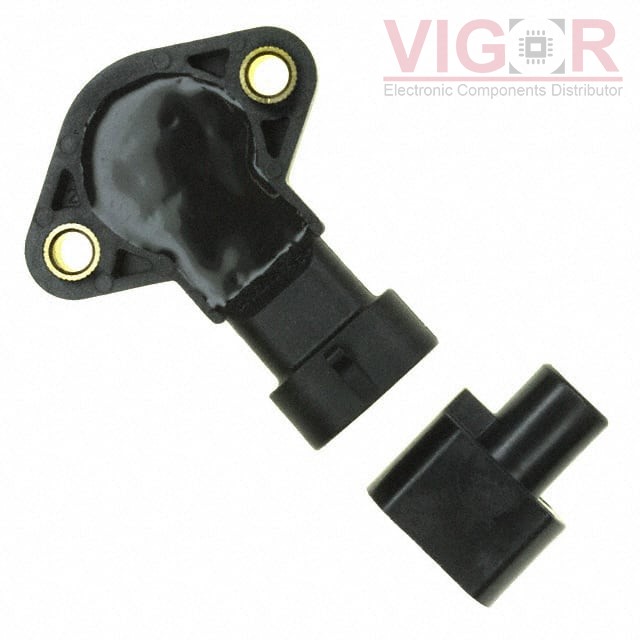

Image is for reference,
please contact us to get the real picture

Part No :: CU103603

Manufacturer: Waldom Electronics

Description: SENSOR ANGLE 45DEG CONNECTOR

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: CU103603 PDF

Availability: 15 pieces

Unit Price: ~~$41.43000~~

Current price of CU103603 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CU103603 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
For Measuring:	Angle
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	0° ~ 45°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	External Magnet, Included
Linearity:	±3.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Chassis Mount
Termination Style:	Connector
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Box with Connector
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
