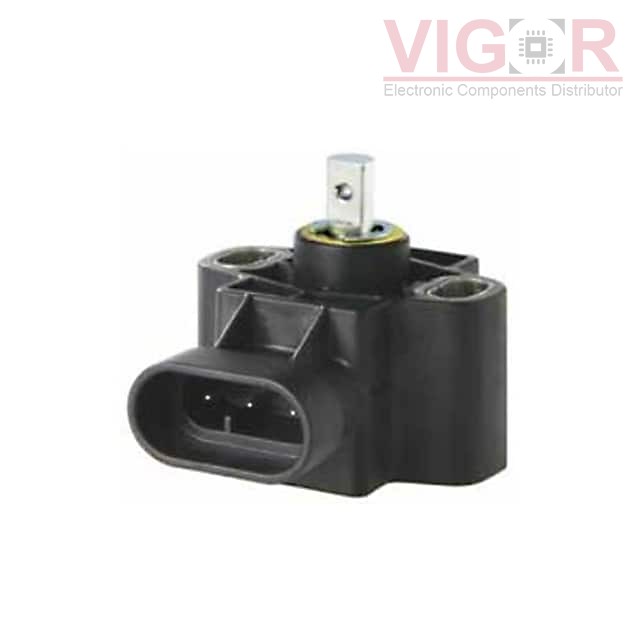

RTY090LVNAX

Part No :: RTY090LVNAX

Manufacturer: Honeywell Sensing and Productivity Solutions

VIGOR # :: 3528471

Description: SENSOR ROTARY 90DEG CONNECTOR

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: RTY090LVNAX PDF

Country of origin: -

Date code: -

RTY090LVNAX Specifications

Type	Description
Series:	RTY
Package:	Bulk
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	90° (±45°), Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	Flatted Shaft
Linearity:	±1%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Chassis Mount
Termination Style:	Connector
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Box with Connector
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 727

Shipped from

HK warehouse

Expected Shipping Date

Aug 18 - Aug 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.2000~~	~~$36.20~~
5	~~$34.5520~~	~~$172.76~~
10	~~$31.2613~~	~~$312.61~~
25	~~$28.7935~~	~~$719.84~~
50	~~$25.5027~~	~~$1 275.13~~
100	~~$24.6800~~	~~$2 468.00~~

Current price of RTY090LVNAX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
