6909-1003-030

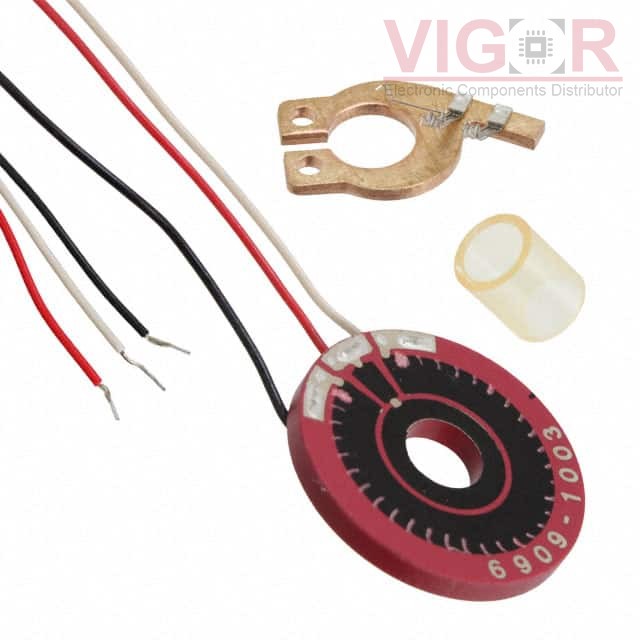

Image is for reference,
please contact us to get the real picture

Part No :: 6909-1003-030

Manufacturer: TE Connectivity Measurement Specialties

Description: SENSOR ROTARY 340DEG WIRE LEADS

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: 6909-1003-030 PDF

Availability: 9 pieces

Unit Price: ~~$103.51000~~

Current price of 6909-1003-030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

6909-1003-030 Specifications

Type	Description
Series:	6909
Package:	Bag
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Resistive
Rotation Angle - Electrical, Mechanical:	0° ~ 340°, Continuous
Linear Range:	-
Output:	Resistive
Output Signal:	Clockwise Increase
Actuator Type:	Exposed Element - Rotary
Linearity:	±0.5%
Resistance:	10 kOhms
Resistance Tolerance:	±10%
Voltage - Supply:	-
Mounting Type:	Custom
Termination Style:	Wire Leads
Operating Temperature:	-65°C ~ 125°C
Package / Case:	Ring, Wire Leads
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
