TLE5014SP16E0002XUMA1

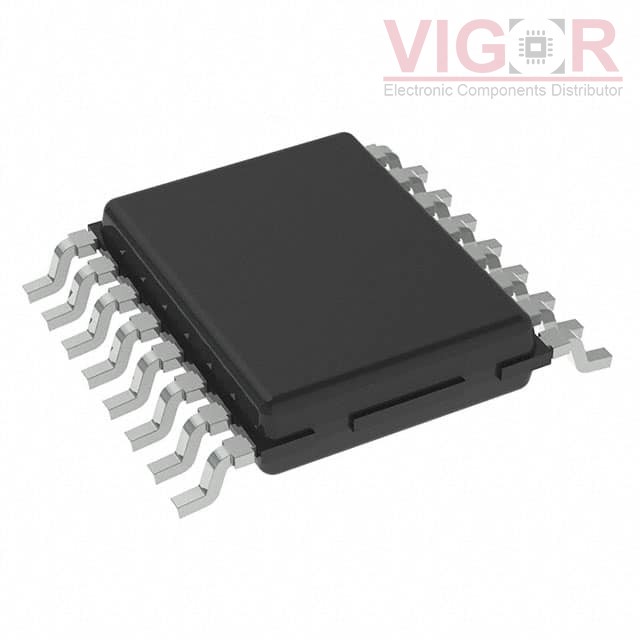

Image is for reference,
please contact us to get the real picture

Part No :: TLE5014SP16E0002XUMA1

Manufacturer: IR (Infineon Technologies)

Description: GMR-BASED ANGLE SENSOR

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: TLE5014SP16E0002XUMA1 PDF

Availability: 289 pieces

Unit Price: ~~$7.47000~~

Current price of TLE5014SP16E0002XUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE5014SP16E0002XUMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	Angle
Technology:	Magnetoresistive
Rotation Angle - Electrical, Mechanical:	0° ~ 360°, Continuous
Linear Range:	-
Output:	Wheatstone Bridge
Output Signal:	Cosine, Sine
Actuator Type:	External Magnet, Not Included
Linearity:	-
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	3V ~ 5.5V
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Operating Temperature:	-40°C ~ 125°C (TA)
Package / Case:	16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package:	PG-TDSO-16-1
