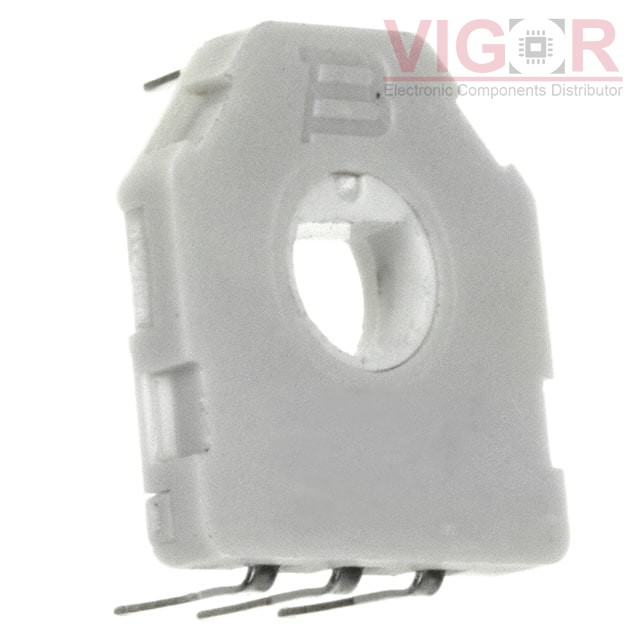

3382H-1-103

Part No :: 3382H-1-103

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 3529253

Description: SENSOR ROTARY 330DEG PC PIN

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: 3382H-1-103 PDF

Country of origin: -

Date code: -

3382H-1-103 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Resistive
Rotation Angle - Electrical, Mechanical:	0° ~ 330°, Continuous
Linear Range:	-
Output:	Resistive
Output Signal:	Clockwise Increase
Actuator Type:	Hole for Shaft
Linearity:	±2%
Resistance:	10 kOhms
Resistance Tolerance:	±30%
Voltage - Supply:	-
Mounting Type:	Through Hole
Termination Style:	PC Pin
Operating Temperature:	-40°C ~ 120°C
Package / Case:	Module, PC Pins
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1450

Shipped from

HK warehouse

Expected Shipping Date

Jan 20 - Jan 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.59~~	~~$2.59~~
5	~~$2.41~~	~~$12.03~~
10	~~$2.00~~	~~$19.98~~
25	~~$1.67~~	~~$41.63~~
50	~~$1.48~~	~~$74.00~~
100	~~$1.41~~	~~$140.60~~
500	~~$1.18~~	~~$592.00~~
1000	~~$1.11~~	~~$1 110.00~~
5000	~~$1.04~~	~~$5 180.00~~

Current price of 3382H-1-103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
