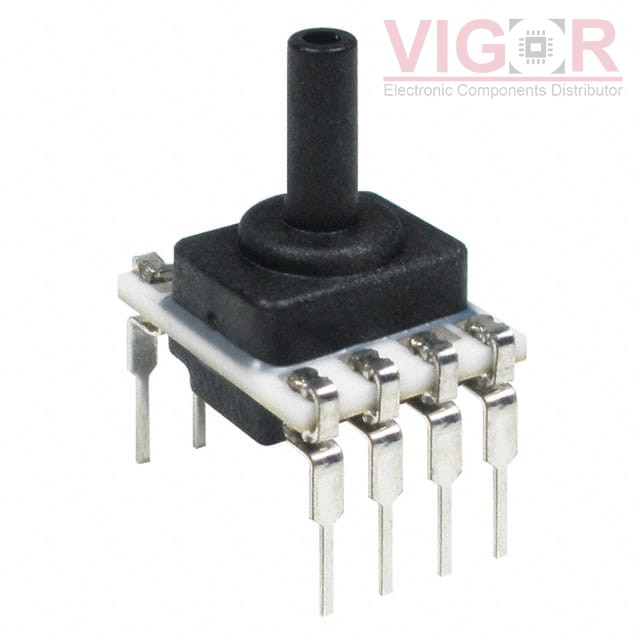

TSCDLNN100MDUCV

Part No :: TSCDLNN100MDUCV

Manufacturer: Honeywell Sensing and Productivity Solutions

VIGOR # :: 4772083

Description: BRD MNT PRESSURE SENSORS

Catalog: Pressure Sensors, Transducers

DataSheet: TSCDLNN100MDUCV PDF

Country of origin: -

Date code: -

TSCDLNN100MDUCV Specifications

Type	Description
Series:	TruStability® TSC
Package:	Bulk
Part Status:	Active
Applications:	Board Mount
Pressure Type:	Differential
Operating Pressure:	±1.45PSI (±10kPa)
Output Type:	Wheatstone Bridge
Output:	0 mV ~ 22 mV (5V)
Accuracy:	±0.15%
Voltage - Supply:	1.5V ~ 12V
Port Size:	Male - 0.1" (2.47mm) Tube
Port Style:	Barbless
Features:	Temperature Compensated
Termination Style:	PC Pin
Maximum Pressure:	±12.65PSI (±87.2kPa)
Operating Temperature:	-40°C ~ 85°C
Package / Case:	8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package:	8-DIP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 29 - Feb 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TSCDLNN100MDUCV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
