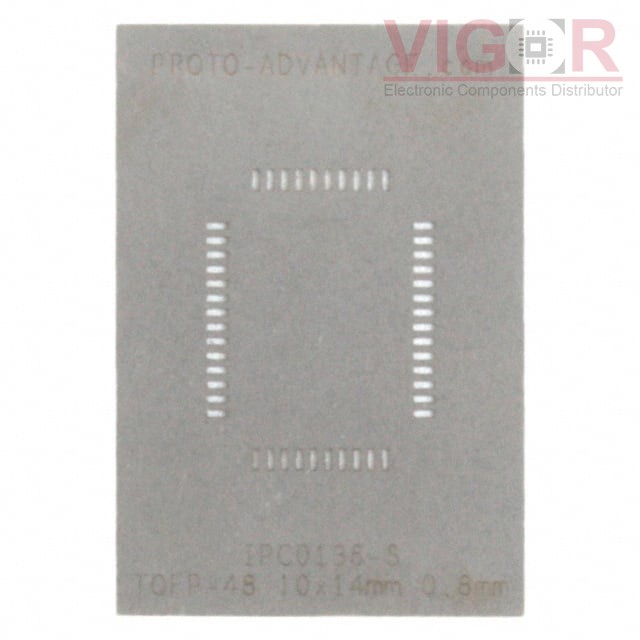

IPC0136-S

Part No :: IPC0136-S

Manufacturer: Chip Quik, Inc.

Description: TQFP-48 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0136-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of IPC0136-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPC0136-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	TQFP
Number of Positions:	48
Pitch:	0.031" (0.80mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.551" L x 0.394" W (14.00mm x 10.00mm)
Thermal Center Pad:	-
Material:	Stainless Steel
