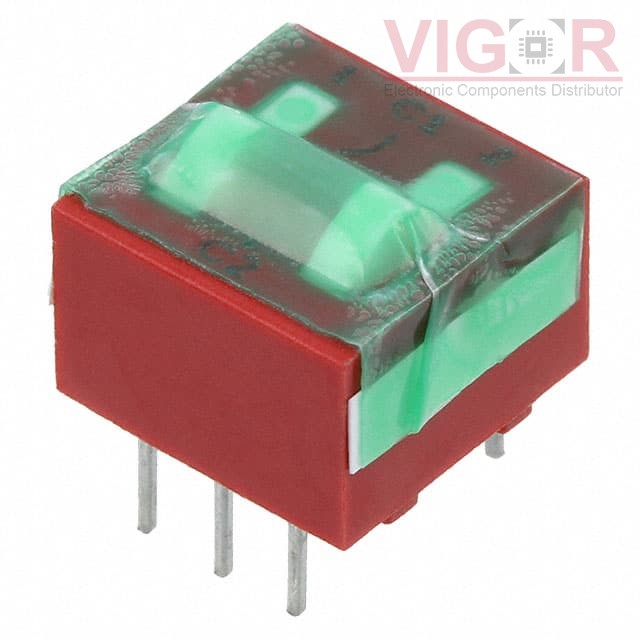

76SC02ST

Part No :: 76SC02ST

Manufacturer: Grayhill, Inc.

VIGOR # :: 2702599

Description: SWITCH ROCKER DIP SPDT 150MA 30V

Catalog: DIP Switches

DataSheet: 76SC02ST PDF

Country of origin: -

Date code: -

76SC02ST Specifications

Type	Description
Series:	76
Package:	Tube
Part Status:	Active
Circuit:	SPDT
Number of Positions:	2
Current Rating (Amps):	150mA
Voltage Rating:	30VDC
Actuator Type:	Rocker
Actuator Level:	Raised
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.315" (8.00mm)
Mounting Type:	Through Hole
Termination Style:	PC Pin
Pitch:	0.100" (2.54mm), Full
Washable:	Yes
Features:	Tape Seal
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 168

Shipped from

HK warehouse

Expected Shipping Date

Oct 31 - Nov 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.9600~~	~~$5.96~~
10	~~$5.7031~~	~~$57.03~~
27	~~$5.4437~~	~~$146.98~~
54	~~$5.1842~~	~~$279.95~~
108	~~$4.6658~~	~~$503.91~~
270	~~$4.1474~~	~~$1 119.81~~
513	~~$4.0178~~	~~$2 061.14~~
1026	~~$3.6290~~	~~$3 723.35~~

Current price of 76SC02ST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
