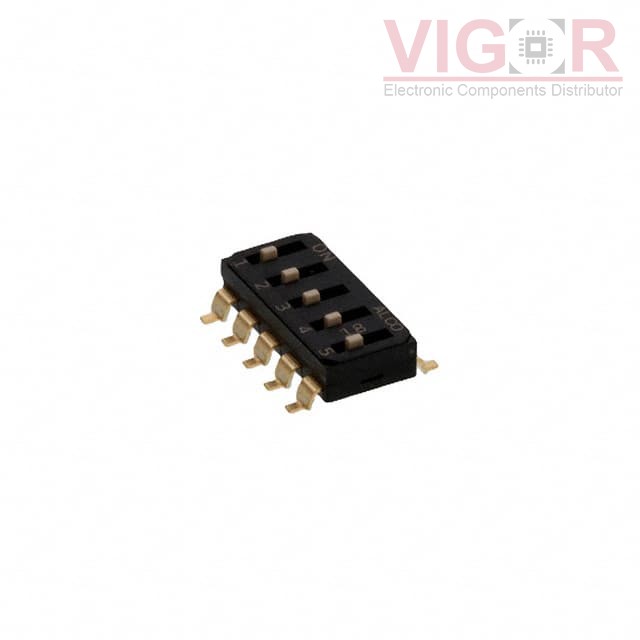

EDS05SGNNTR04Q

Part No :: EDS05SGNNTR04Q

Manufacturer: TE Connectivity ALCOSWITCH Switches

Description: END STACK DIP 5P G RAISED T&R

Catalog: DIP Switches

DataSheet: EDS05SGNNTR04Q PDF

Availability: 183 pieces

Current price of EDS05SGNNTR04Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EDS05SGNNTR04Q Specifications

Type	Description
Series:	EDS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST
Number of Positions:	5
Current Rating (Amps):	25mA
Voltage Rating:	24VDC
Actuator Type:	Slide (Standard)
Actuator Level:	Raised
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.150" (3.80mm)
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-20°C ~ 85°C
